3.0 KW Sungrow Residential S/P PV Hybrid Inverter Including Wi-Fi Dongle and Power Meter

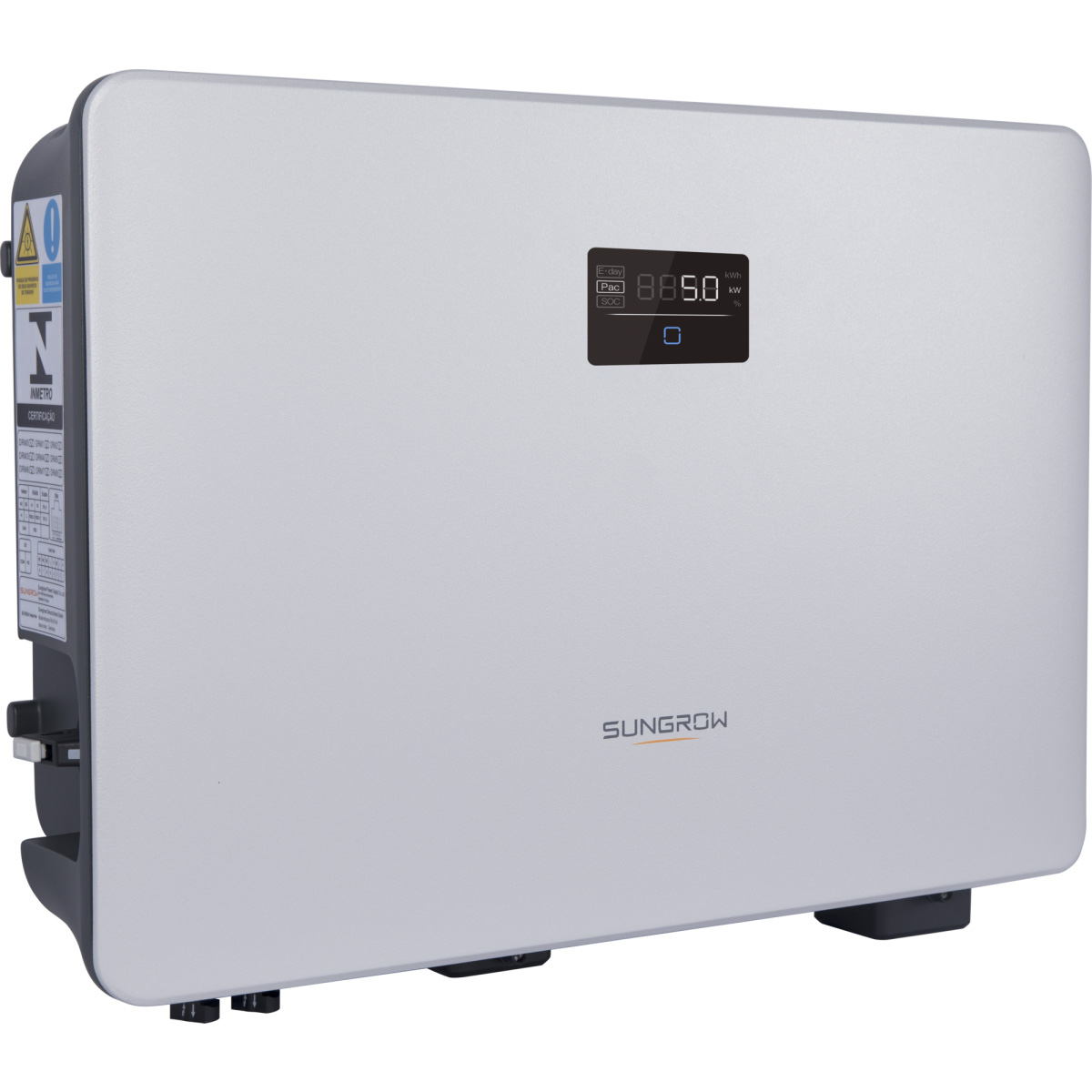

Sungrow SH3.0RS Residential Hybrid Single Phase Inverter

The Sungrow SH3.0RS is a 3.0 KW residential hybrid single-phase PV string inverter, designed to enhance energy independence and flexibility in solar installations.

Flexible Application

• Wide battery voltage range (80-460 V)
• Ideal for both retrofitting and new installations
• Built-in smart PID recovery function

Energy Independence

• Seamless transition to backup mode for protection against power outages
• Fast charging or discharging, enabling higher self-consumption results
• Built-in EMS with advanced customization

User-Friendly Setup

• Plug and play installation
• iSolarCloud monitoring available on App and Web
• Lightweight and compact, optimized for heat dissipation

Smart Management

• Real-time data with 10-second refresh sample
• 24/7 live monitoring online and with integrated display
• Online IV curve scan and diagnosis

Key Specs

• AC output power: 3000 VA
• Max AC output current: 13.7 A
• Rated AC voltage: 220 / 230 / 240 V
• Recommended max. PV input power: 4.5 kWp
• Max. PV input voltage: 600 V
• Min. operating PV voltage / Start-up input voltage: 40 V / 50 V
• Degree of protection: IP 65
• Dimensions (W x H x D): 320 x 225 x 120 mm
• Weight: 6 kg
