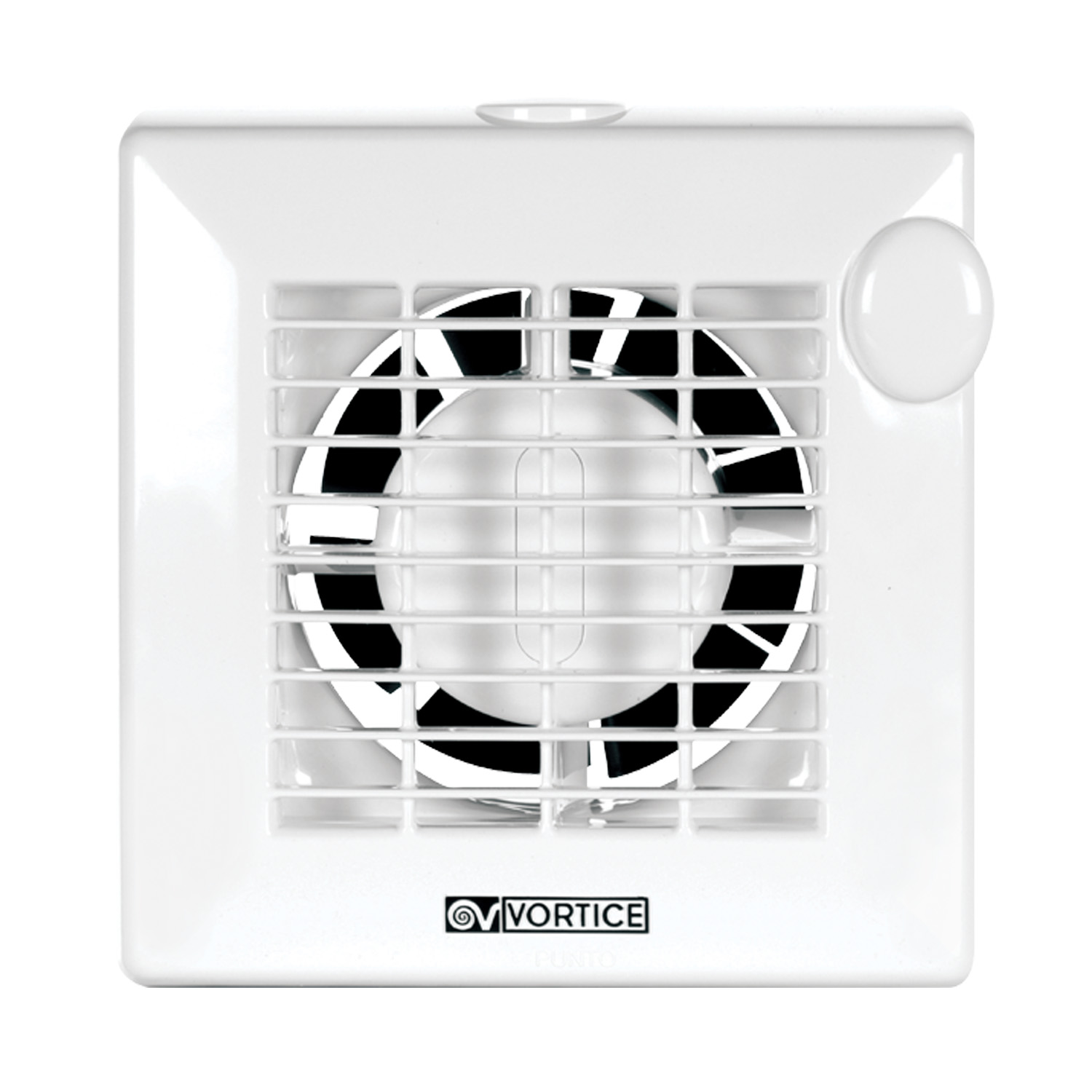

Vortice 11211 PUNTO M100/4 T 100mm Axial Extractor Fan with Timer

Manufacturer: Vortice

Be the first to review this product

Targeted Extraction: Ideal for bathrooms, shower rooms, en suites, and W.C.s for intermittent use.
Wall Installation: Designed specifically for wall mounting.
Water Resistant: IPX4 rated for splash proof protection in all models.
Adjustable Timer: Timer settings range from 3 to 20 minutes for customized ventilation.
Ventilation Limitations: Not suitable for use with roof tile vents or flat ducting.
Efficient Performance: High airflow with low noise and power consumption, thanks to the wing profile blade and motor support.

SKU: 11211

Free Delivery on orders over €100
€8.50 Delivery on orders under €100

Delivery Notice (5 March 2026): Orders for delivery are currently experiencing significant delays due to an issue with UPS.

Online stock is Ballycoolin only. Web orders can only be collected in Ballycoolin.

View branch locations

Availability: 484 in stock (Ballycoolin)

€35.06 inc VAT

excluding delivery

Qty:

i h

Overview
Reviews
Contact Us

This Vortice 4" ventilation model integrates a sophisticated run-on timer feature. This innovative function activates the fan when the room light is turned on and continues operating for a customizable duration of 1 to 30 minutes after the light is switched off. This requires a three-wire connection at the fan position (permanent live, switched live, and neutral, excluding earth), ensuring straightforward installation and reliable operation.

Key Features and Benefits

Voltage and Power: Operates on mains voltage of 220-240V AC at 50Hz. It is designed for efficient operation with a modest power consumption of 18W.
Electrical Requirements: Requires three distinct electrical connections: a permanent live, a switched live, and a neutral. This fan features Class II double insulation and does not require an earth connection.
Extraction Capability: Boasts an impressive extraction rate of 90 cubic meters per hour or 25 liters per second, efficiently managing moisture and odors in your space.
Adjustable Timer: The timer can be set from 3 to 20 minutes, allowing for controlled ventilation based on your specific needs.
Design and Installation: With dimensions of 159mm x 160mm x 47mm, and a 99mm diameter spigot that extends 53mm, this model is compatible with standard 100mm / 4 inch ducting. Note: Ducting and fittings are not included.
Sound Level: Operates quietly with a sound output of only 37.5dB(A) at 3 meters, minimizing noise disruption.
Applications: Ideal for intermittent extraction in bathrooms, shower rooms, en-suites, and W.C.s. It is IPX4 rated, making it resistant to water splashes from any direction.
Certifications: Fully certified with UKCA & CE marks, ensuring compliance with health, safety, and environmental protection standards.
