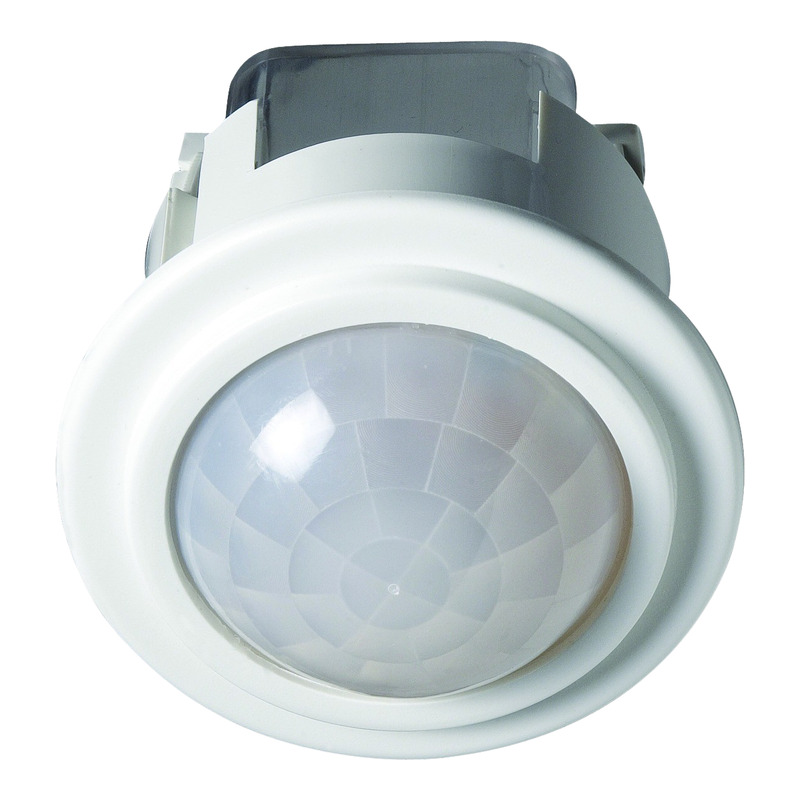

ROBUS PROTON 360 Degree PIR, Recessed, IP20, 75mm, White

* Injection moulded polycarbonate body provides a strong, durable and impact resistant * White small diameter sensing head ensures the colour matches most ceiling finishes * Clear terminal cover ensures the terminations are safe and visible * Large mains terminals for 2 x 1.5mm2 conductors enables loop-in, loop-out for supply to other sensors * Good quality strong spring clips ensures the sensor is pulled flush to the surface * 10m diameter sensing when mounted at 3m high provides area sensing and can be linked to other sensors for larger areas such as long corridors or offices

• Suitable for recessed indoor applications
• Injection moulded ABS body - impact resistant
• Clear terminal cover, integral clamp and large mains terminals for 2 x 1.5mm² conductors
• Terminations are safe and visible and enables loop-in/loop-out for supply to other sensors
• Passive infra red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering
• Detection range 360°, detection distance 9m at 2.8m mounting height
• Adjustable time delay of 5sec to 15min ensures that lighting is switched off with required delay
• Adjustable lux setting of 2lx to 2000lx
• LED load max 300W
• Fluorescent load max 600W

Download Product Datasheet
