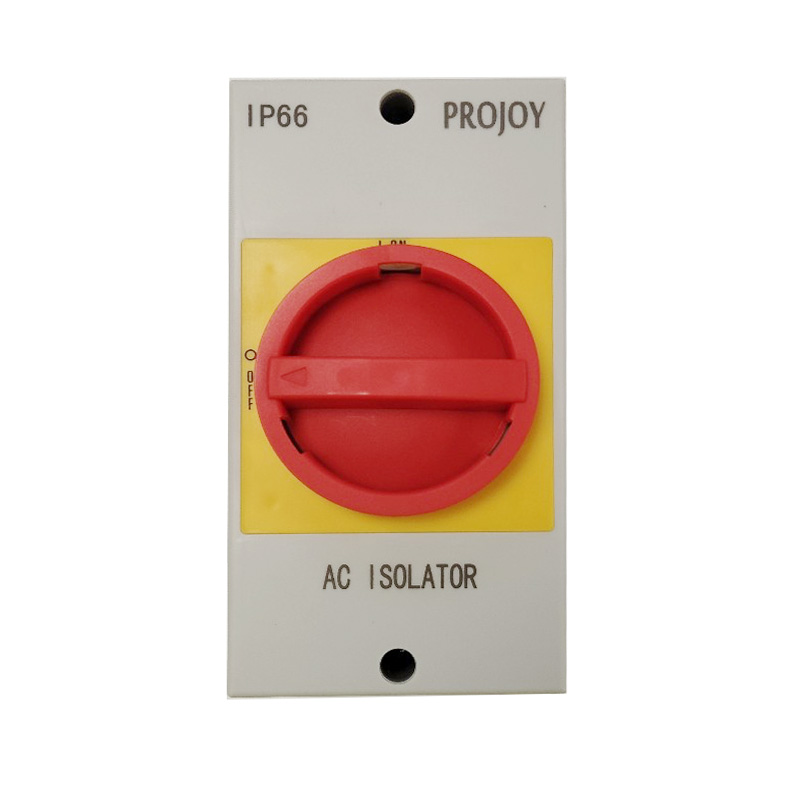

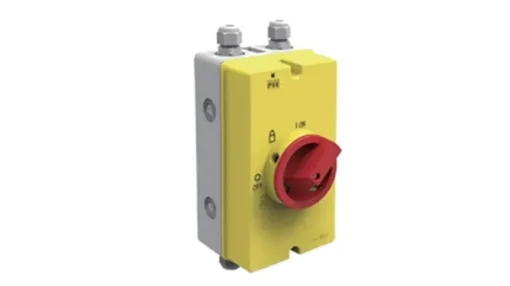

Projoy IP66 32A 4 Pole AC Isolator

ProJoy 32A 4-Pole AC Isolator Switch – IP66

The ProJoy 32A 4-Pole AC Isolator is a durable enclosed switch designed to safely isolate an AC power supply at the source. Compact, reliable, and built for demanding site conditions, it is an ideal isolator for electrical installations where safe shut-off and maintenance isolation is required.

Featuring silver alloy contacts for improved conductivity and long service life, this isolator delivers consistent performance with excellent reliability. Its modular design also makes installation straightforward while maintaining strong safety standards.

Key Features

4-Pole Isolation
Designed for secure AC circuit isolation with a 4-pole configuration, suitable for a wide range of commercial and industrial applications.

Silver Alloy Contacts
High-quality silver alloy contacts provide long electrical life, improved switching performance, and enhanced reliability over time.

IP66 Weatherproof Protection
Rated IP66 for strong protection against dust and water ingress, making it suitable for indoor and outdoor use.

Compact and Space-Saving
Small enclosure design requires minimal installation space, ideal for tight switch rooms, panels, and external enclosures.

Lockable OFF Position
Includes a lockable off function for improved safety and compliance during maintenance work.

Flexible Installation Options
Can be installed using multiple methods including panel mounting, door clutch, enclosure mounting, and DIN rail board mounting.

Certified Quality
Manufactured to a high standard with CE and TÜV certification.

Product Specification

Rated Current: 32A
Poles: 4 Pole
Rated Working Voltage: AC 240V / AC 440V
Protection Rating: IP66
Switch Type: Seal switch box type (enclosed isolator)
Contact Type: Silver alloy contacts
Certification: CE / TÜV

Ideal For

AC circuit isolation in commercial and industrial electrical systems
Outdoor electrical installations requiring dust and water protection
Distribution boards, panels, and control enclosures
Safe shutdown and maintenance isolation for power circuits up to 32A

The ProJoy 32A AC Isolator combines a compact footprint with rugged IP66 protection, long electrical life, and versatile mounting options, making it a dependable isolator solution for a wide range of electrical installations.
