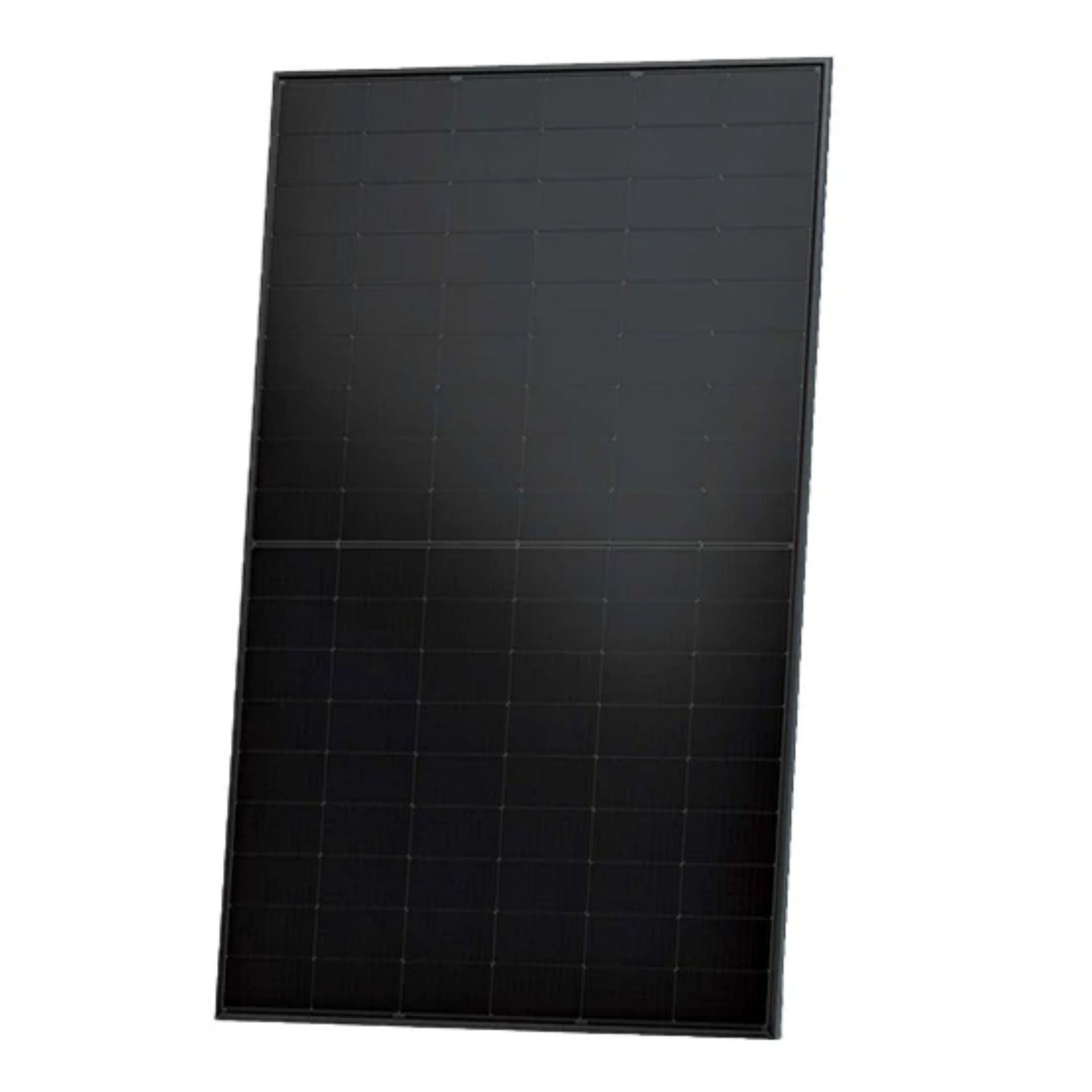

The Jinko JKM470N-48QL6-DB 470W All Black Solar Panel is a high-efficiency N-type solar PV module from Jinko Solar’s Tiger Neo III range, designed for residential and commercial solar installations across Ireland.
Delivering 470W of power with an impressive 23.52% module efficiency, the JKM470N-48QL6-DB combines Jinko’s advanced N-type TOPCon cell technology with a premium all-black, dual-glass construction. Its high output and compact format make it an excellent choice for installers looking to maximise solar generation from available roof space.
The module uses 192 N-type monocrystalline cells in a 48 × 4 configuration and measures 1762 × 1134 × 30 mm, with a total weight of 24.4 kg. Its durable construction includes 2.0 mm anti-reflective front glass, 2.0 mm heat-strengthened rear glass, an anodised aluminium alloy frame and an IP68-rated junction box.
Engineered for long-term performance in demanding conditions, the Tiger Neo III platform offers excellent low-light performance, improved heat resistance and enhanced protection against PID, LID, LeTID and UV degradation. The module is rated to withstand static loads of up to 6000Pa on the front and 4000Pa on the rear.
Backed by a 25-year product warranty and 30-year linear power warranty, the Jinko 470W solar panel is a strong choice for professional solar PV installations where efficiency, reliability and appearance are equally important.
Available from National Electrical Wholesalers branches throughout Ireland. Contact your local NEW branch for pricing, stock availability and assistance with solar panels, inverters, mounting systems, solar cable and other solar PV installation equipment.
Key Features
- 470W rated maximum power
- High 23.52% module efficiency
- Advanced N-type TOPCon technology
- Premium all-black appearance
- Mono-facial dual-glass construction
- 192-cell / 48 × 4 cell configuration
- Excellent low-light performance
- Enhanced resistance to PID, LID, LeTID and UV degradation
- IP68-rated junction box
- 1500V DC maximum system voltage
- 6000Pa front / 4000Pa rear mechanical load rating
- 25-year product warranty
- 30-year linear power warranty
- 88.85% warranted power output at year 30
Technical Specifications
- Maximum Power (Pmax): 470W
- Module Efficiency: 23.52%
- Maximum Power Voltage (Vmp): 30.97V
- Maximum Power Current (Imp): 15.18A
- Open-Circuit Voltage (Voc): 36.19V
- Short-Circuit Current (Isc): 15.80A
- Dimensions: 1762 × 1134 × 30 mm
- Weight: 24.4 kg
- Cell Type: N-type monocrystalline TOPCon
- Cell Layout: 192 cells / 48 × 4
- Maximum System Voltage: 1500V DC
- Maximum Series Fuse Rating: 30A
- Junction Box: IP68
- Protection Class: Class II
- IEC Fire Type: Class C
- Connector: JK03M / JK03M2 / Others
- Output Cable: ≥4.0 mm²
- Cable Length: (+) 600 mm / (-) 400 mm or customised
Suitable For
The Jinko 470W Tiger Neo III solar panel is suitable for a wide range of solar PV installations in Ireland, including:
- Residential rooftop solar PV systems
- Commercial and industrial solar installations
- New-build and retrofit solar projects
- High-efficiency rooftop systems with limited available space
- Premium all-black residential solar installations
- Solar projects requiring reliable N-type TOPCon modules
- Installations where long-term performance and product warranty are important
Jinko Solar Panels from National Electrical Wholesalers
National Electrical Wholesalers (NEW) supplies solar panels and renewable energy equipment to electrical contractors and solar PV installers throughout Ireland.
The Jinko Tiger Neo III 470W All Black Solar Panel is available through our branch network, alongside a comprehensive range of solar PV products including inverters, battery storage, solar mounting systems, PV cable, connectors, isolators and electrical protection equipment.
Visit or contact your local National Electrical Wholesalers branch in Ireland for stock availability, pricing and support with your next residential or commercial solar PV project.
