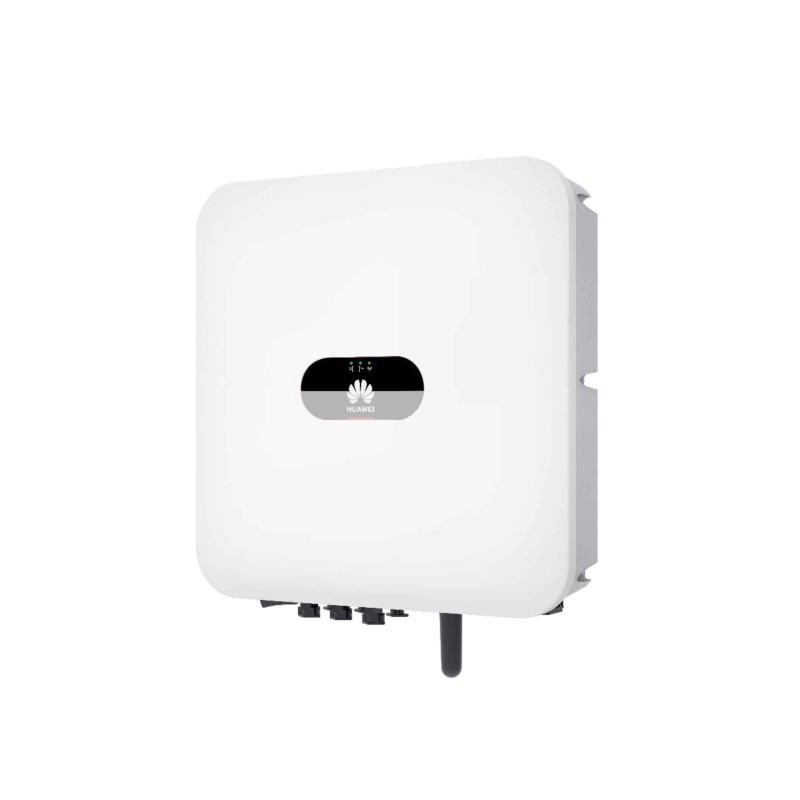

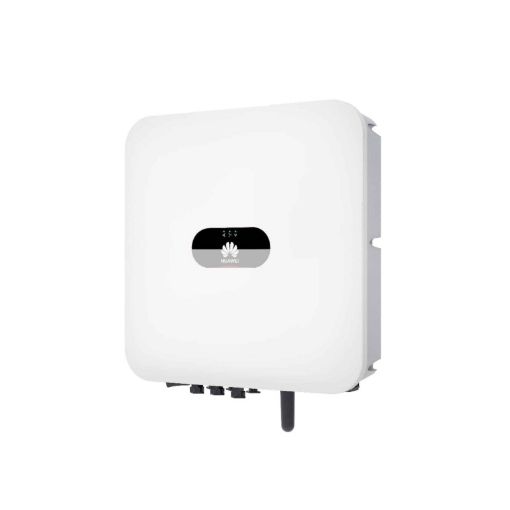

Huawei SUN2000-3KTL-L1 3300/4500W Hybrid Inverter designed for battery and backup box connection. The Huawei single-phase inverters of the SUN2000 series (Smart Energy Center) are Huawei's hybrid solution for residential photovoltaic systems connected to the network. The particularity of these products is that they are already prepared for the simultaneous or future insertion of lithium batteries for storage. All Huawei inverters comply with the CEI 0-21 standard.
New generation of Huawei SUN2000-KTL-L1 inverters for residential systems. Small, light and with an elegant design, the Huawei single-phase inverter will significantly enhance the efficiency of your home and maximize energy self-consumption. Battery Ready, optional Huawei Smart Luna 2000 or LG Chem RESU batteries.
- Powers available in AC: 2000W, 3000W, 3600W, 4000W, 4600W, 5000W and the new power available 6000W
- Very low weight and dimensions (dimensions 365X365X156 mm, weight about 12kg)
- Efficiency up to 98.4%
- Possibility to manage the new Huawei SUN2000 450P optimizers without using the safety box
- Integrated charge controller for lithium batteries (e.g. LG Resu or Powermate Luna Huawei)
- Possibility of managing external loads (through smart plug with ZigBee interface) to maximize self-consumption
- Huawei SW platform for integrated management of inverters, optimizers, batteries and smart plugs
Smart Energy Center (Single-phase)
- AI-based Active Arc Protection (Compatible with Optimizer SUN2000-450W-P)
- Battery Ready for direct Plug&Play, no extra devices and no Retrofit required
- A 5KTL inverter allows for a full AC output power of 5kW plus a full power battery charge of 5kW.
- High efficiency inverter topology, maximum efficiency of 98.4%
Security On
- Active AI-based arc flash protection
- Locate the location of the arc flash fault
Superior Yield
- Up to 30% more energy thanks to optimizers
- Double the power available for battery charging
Best Experience
- Universal optimizer for more efficient management
- Self-mapping of modules in just 5 sec
Double power available for the battery
- 5kW for the AC + output
- 5kW for battery recharging
Technical specifications
Efficiency
- Max. efficiency: 98.3%;
- European Weighted Efficiency: 97.3%
PV string input data
- Max. input power: 4500 Wp;
- Max. input voltage: 600 V;
- MPPT operating voltage range: 90-560 V;
- Starting voltage: 100 V;
- Rated input voltage: 360 V;
- Max. input current for MPPT: 12.5 A;
- Max. short circuit current: 18 V;
- Number of MPPTs: 2;
- Max number of strings for MPPT: 1.
DC Battery input data
- Compatible battery: LG Chem RESU 7H_R / 10H_R;
- Operating voltage range: 350 ～ 450 VDC;
- Max operating current: 10 A @7H_R / 15 A @10H_R;
- Maximum charge power: 3500 W @7H_R / 5000 W @10H_R;
- Maximum discharge power @7H_R: 3300 W;
- Maximum discharge power @10H_R: 3300 W;
- Compatible battery: HUAWEI Smart LUNA2000 ESS Battery 5kWh – 30kWh;
- Operating voltage range: 350 ～ 560 VDC;
- Max operating current: 15 A;
- Maximum charging power: 5000 W;
- Maximum discharge power: 3300 W.
Network Output Data (on-grid)
- Connection to the mains: Single-phase;
- Rated Output Power: 3000 W;
- Max. apparent power from mains: 3300 VA;
- Nominal output voltage: 220/230/240 Vac;
- Rated network frequency AC side: 50/60 Hz;
- Max. AC side output current on mains: 15 A;
- Adjustable power factor: 0.8 capaci... 0.8 induct;
- Max. total harmonic distortion: <3%.
AC side output data (Box-Bo backup, opt.)
- Max. apparent power: 5000 VA;
- Max. output current: 22.7 A;
- Rated output voltage: 220 V/230 V;
- Adjustable power factor: 0.8 capac... 0.8 induct.
Protection
- PV insulation resistance detection: Yes;
- Residual current monitoring: Yes;
- DC Reverse Polarity Protection: Yes;
- Anti-isolation protection: Yes;
- AC side overcurrent protection: Yes;
- AC Side Short Circuit Protection: Yes;
- DC/AC side overvoltage protection: Yes, compatible with TYPE II protection class according to EN / IEC 61643-11;
- AFCI Arc Fault Protection: Yes;
- Reverse charging of the battery from the network: Yes
General data
- Operating temperature range: -25 ~ +60°C;
- Relative humidity: 0 ~ 100%;
- Max. operating altitude: 0 ~ 4,000m (decrease over 2,000m);
- Cooling method: Natural convection;
- Display, user interface: LED indicators; integrated WLAN + FusionSolar APP;
- Communication: RS485, WLAN via WLAN module integrated in the inverter Ethernet via Smart Dongle-WLAN-FE (optional); 4G / 3G / 2G via Smart Dongle-4G (optional);
- Weight: 12kg;
- Dimensions (W×H×D): 365x365x156 mm;
- Night power consumption: <2.5W;
- Ingress protection degree: IP65.
- Compatible optimizer: with DC MBUS SUN2000-450W-P
- Safety: EN/IEC 62109-1, EN/IEC 62109-2
- Network connection standards: G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116
