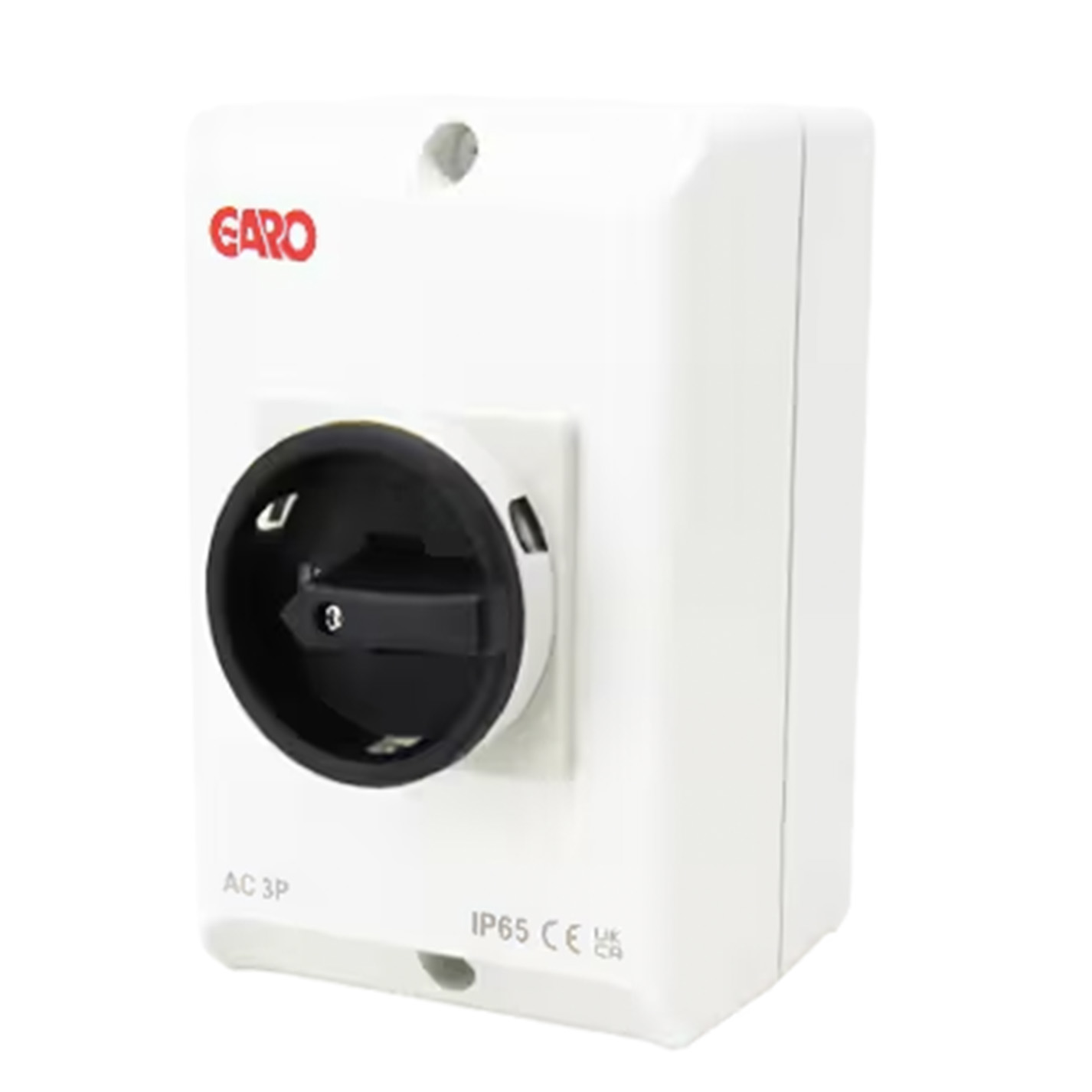

Garo 32A 3Pole Safety Switch IP65 Black

GARO 32A 3 Pole Safety Switch – IP65 (Black Handle) | GSS332IP65B

The GARO GSS332IP65B 32A 3 Pole Safety Switch is a compact, heavy-duty isolator designed for safe switching and isolation in commercial and industrial electrical installations. With an IP65-rated enclosure and robust black rotary handle, it is ideal for use in outdoor environments, plant rooms, workshops, and general distribution applications where reliable circuit isolation is required.

This switch is interlocked for added safety and manufactured to meet recognised industry standards, making it a dependable choice for contractors and installers working on demanding sites.

Key Features

32A Rated 3 Pole Isolation
Designed for safe AC isolation up to 32A with a 3 pole configuration, suitable for a wide range of electrical circuits.

IP65 Weatherproof Protection
Rated IP65 for protection against dust and water ingress, making it suitable for both indoor and outdoor installation.

Interlocked Safety Design
Interlocked mechanism provides added operational safety and helps prevent incorrect switching during use.

Compact Enclosure
Space-saving design ideal for tight installations, control panels, and external enclosures.

Multiple Cable Entry Options
Supplied with 4 x M20/25 knockouts for flexible installation and cable routing.

Installer-Friendly Terminals
Terminal capacity supports conductors from 6mm² to 16mm².

Technical Specification

Manufacturer: GARO
Model: Safety Switch IP65
Part Number: GSS332IP65B
Rated Current (AC22): 32A
Number of Poles: 3 Pole (3P)
Rated Power AC3 230V: 7.5kW
Rated Power AC3 400V: 11kW
Rated Continuous Power (In): 32A
Terminal Capacity: 6–16mm²
Knockouts: 4 x M20/25
IP Rating: IP65
Interlocked: Yes
Standard: BS EN 60947-3
Certification: CE, UKCA

Dimensions

Height: 175mm
Width: 114mm
Depth: 100mm (+ 35mm handle projection)

Ideal Applications

Motor isolation and local switching
Commercial and industrial distribution circuits
Outdoor switching applications requiring IP-rated protection
Workshops, plant rooms, warehouses, and site enclosures

A reliable and professional isolator solution, the GARO GSS332IP65B offers dependable performance, strong environmental protection, and installer-friendly cable entry options, making it an excellent choice for everyday electrical isolation work.
