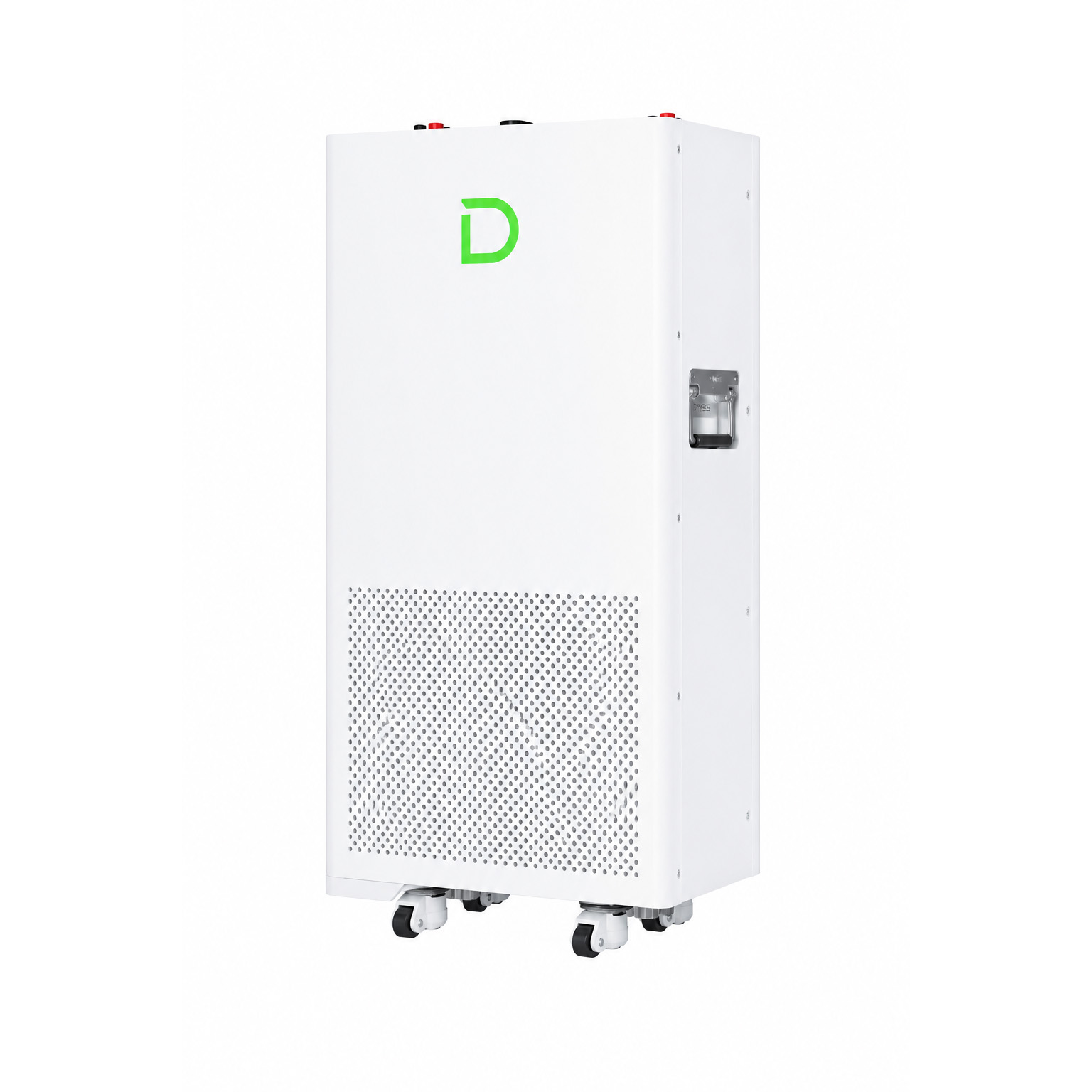

Dyness DY-POWERBRICK-PLUS | PowerBrick Plus 16.07kWh Battery Storage System

Dyness DY-POWERBRICK-PLUS | PowerBrick Plus 16.07kWh Battery Storage System

The Dyness PowerBrick Plus is a high-capacity, low-voltage lithium battery storage solution designed for residential and small commercial renewable energy applications. Offering 16.07kWh of nominal battery capacity, it provides a flexible and scalable option for storing solar-generated energy and reducing reliance on the grid.

Built using long-life LiFePO4 (LFP) battery technology, the PowerBrick Plus is designed for reliable everyday operation, with an IP65-rated enclosure suitable for both indoor and outdoor installation. The system can also be expanded by connecting up to 50 battery modules in parallel, providing a scalable storage solution for larger energy requirements.

Key Features

• 16.07kWh Capacity: High-capacity battery storage suitable for residential and commercial renewable energy systems.
• High Charge & Discharge Performance: Supports a maximum charge/discharge current of 200A.
• LiFePO4 Battery Technology: 314Ah LFP cells designed for safety, stability and long service life.
• 8000+ Cycle Life: Designed for dependable long-term energy storage.
• Scalable System: Supports up to 50 battery modules connected in parallel.
• IP65 Rated: Suitable for indoor or outdoor installation.
• Flexible Installation: Can be wall-mounted or floor-mounted depending on the installation requirements.
• Integrated Safety Features: Includes an intelligent fire suppression system for additional battery protection.
• Optional Self-Heating: Supports operation in temperatures from -20°C to 55°C when equipped with the optional self-heating function.
• 10-Year Warranty: Designed to provide long-term reliability and peace of mind.

Product Specifications

• Manufacturer: Dyness
• Product Code: DY-POWERBRICK-PLUS
• Battery Type: LiFePO4 (LFP)
• Nominal Battery Energy: 16.07kWh
• Battery Capacity: 314Ah
• Maximum Charge/Discharge Current: 200A
• Cycle Life: 8000+ cycles
• Protection Rating: IP65
• Maximum Parallel Modules: 50
• Dimensions (W × D × H): 435 × 235 × 850mm
• Net Weight: 119kg
• Installation: Wall-mounted or floor-mounted

Available from National Electrical Wholesalers as part of our growing range of solar, battery storage and renewable energy solutions. For product availability, compatibility or technical information, please contact our renewables team.
