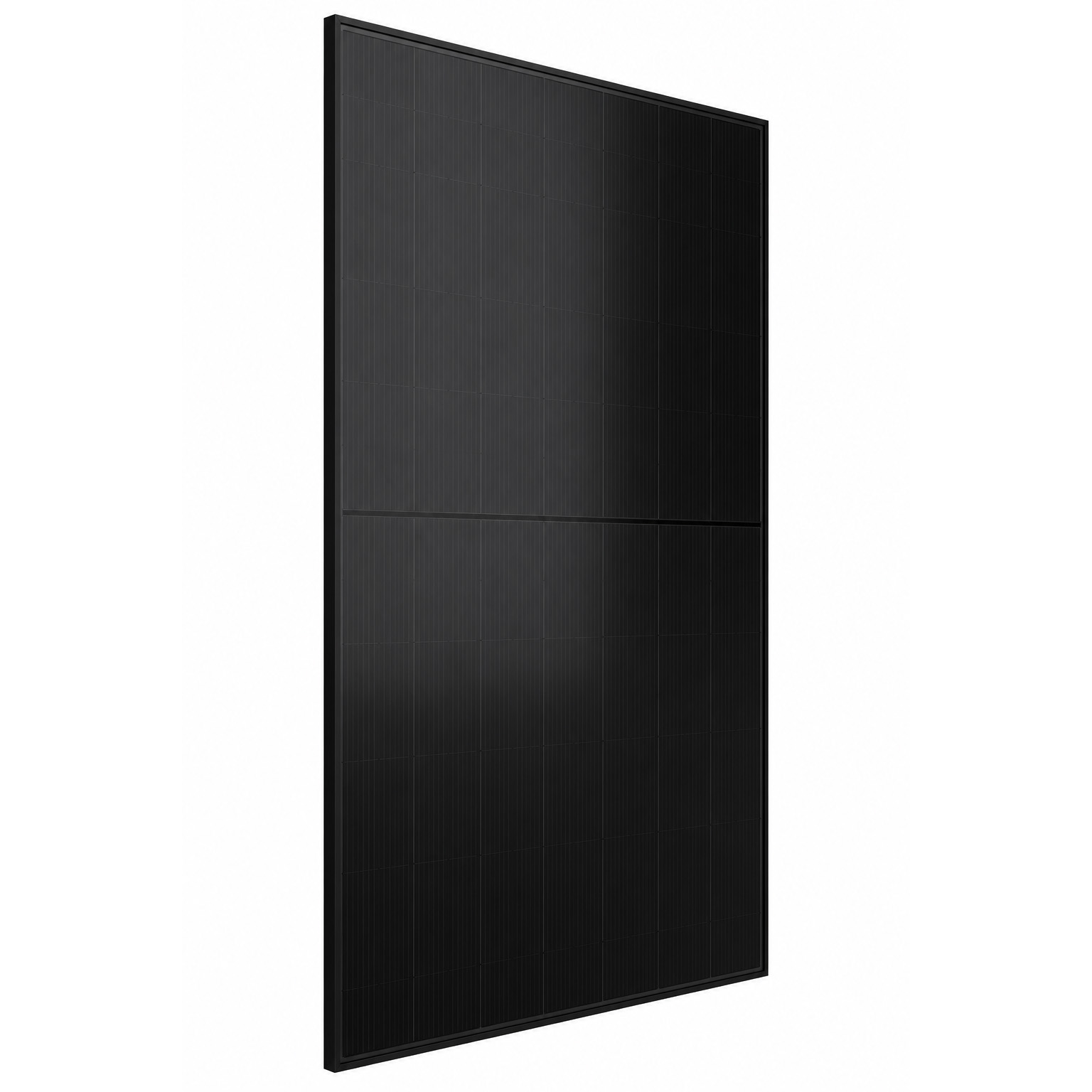

AIKO Neostar 3S 490W G3 MCE54Mb Mono-Glass Black PV Panel

The AIKO Neostar 3S 490W is a high-efficiency mono-glass solar PV module designed for residential and commercial solar installations. Combining 490W output with an impressive 24.5% module efficiency, it delivers excellent power generation from a compact panel footprint.

Featuring AIKO's advanced N-Type ABC cell technology, the Neostar 3S range is engineered for high performance, improved operation in partially shaded conditions and long-term reliability. Its black anodised aluminium frame and clean, modern appearance also make it an excellent choice for installations where aesthetics are important.

Key Features

• 490W Power Output: High-output PV module for efficient residential and commercial solar installations.
• 24.5% Module Efficiency: Excellent efficiency helps maximise energy generation from the available roof space.
• N-Type ABC Technology: AIKO's advanced cell technology combines high power output with excellent long-term performance.
• Partial Shading Optimisation: Designed to improve performance where modules may experience partial shading.
• Improved Temperature Performance: Pmax temperature coefficient of -0.26%/°C.
• Micro-Crack Resistance: Designed for improved durability and long-term reliability.
• Black Frame: Black anodised aluminium frame provides a clean, modern finish.
• IP68 Junction Box: Includes three bypass diodes for reliable system operation.
• 30-Year Product Warranty: Long-term manufacturer product protection.
• 30-Year Linear Performance Warranty: First-year degradation of no more than 1%, followed by annual degradation of no more than 0.35% from years 2–30.

Product Specifications

• Manufacturer: AIKO
• Model: AIKO-A490-MCE54Mb
• Series: Neostar 3S54
• Maximum Power (Pmax): 490W
• Module Efficiency: 24.5%
• Cell Type: N-Type ABC
• Number of Cells: 108 (6 × 18)
• Glass: 3.2mm Tempered Glass
• Frame: Black Anodised Aluminium
• Dimensions: 1762 × 1134 × 30mm
• Weight: 21.1kg ±3%
• Junction Box: IP68, 3 Bypass Diodes
• Connector: MC4-EVO2A
• Maximum System Voltage: DC 1500V
• Maximum Series Fuse Rating: 25A
• Operating Temperature: -40°C to +70°C
• Maximum Static Load: 5400Pa Front / 2400Pa Back
• Power Tolerance: 0 to +3%

Contact for availability from National Electrical Wholesalers. This is part of our comprehensive range of solar PV, battery storage and renewable energy solutions. For availability, project requirements or further technical information, please contact our renewables team.
