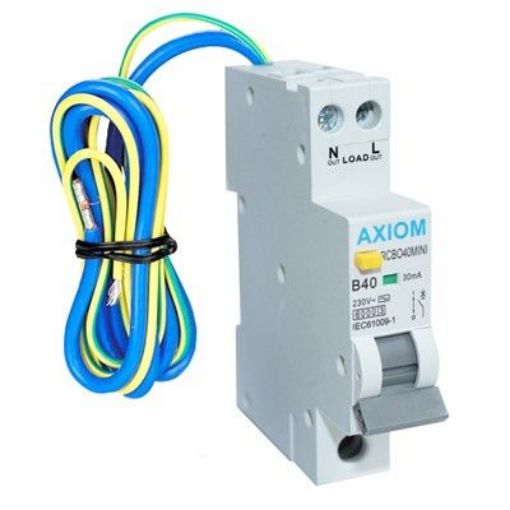

The Single Module RCBO 40Amp 30mA Circuit Breaker from CED is designed to give protection for both overload and Short Circuit protection - while offering more wiring space for installers. It also protect against direct contact by human bodies, protect household and commercial distribution systems. This units disconnects both line and neutral going feeds on trip with 30mA tripping current. Because of the compact size, the achievable interrupt capacity is 6KA.
Products specifications
| Dimensions | 17.8x90mm |
| IP Rating | IP120 |
| Finish | Grey |
| Frequency | 50/60Hz |
| Voltage Rating | 230 - 240V |
| Sensitivity | 30mA |
| Terminal Capacity | up to 25mm |
| Amp Rating | 40A |
| Breaking Capacity | 6kA |
| Number of Poles | 1P+N (1 Module) |
| Specifications | IEC/EN 61009 |
| Type | B |
| Material | Acrylic |
| Warranty | 1 year |
| Weight | 0.75Kg |
