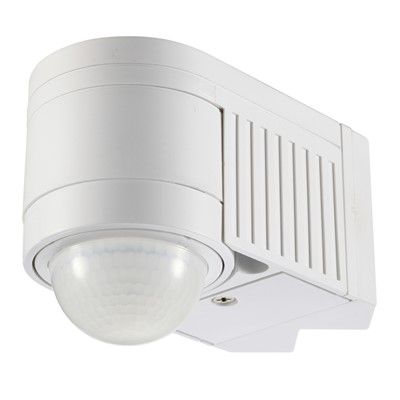

    Meridian 360 Corner PIR 12m IP44 White

    Manufacturer: Meridian
    SKU: PIR360CNRWHI
    Free Delivery on orders over €100
    €4.95 Delivery on orders under €100

    Online stock levels at Ballycoolin only. Call your local branch for availability.   View branch locations

    Availability: 3 in stock (Ballycoolin)
    €21.31 inc VAT
    excluding delivery
    i h
    Ship to
    *
    *
    Delivery Method
    Name
    Estimated Delivery
    Price
    No delivery options

    This 360 Wall Mount Corner Infrared Motion Detector combines the latest sensor technology and modern design to create a well-balanced unit. The motion detector is equipped with two highly sensitive infrared detectors positioned at a specific angle to each other. Reliable, uninterrupted all-round protection of areas as large as 180. Sensor can be set to a maximum reach of 12m or 5m by turning the multi lens. The shrouds provided can also be used for limiting the detection zone and matching it to the specific situation. Time and twilight threshold can be infinitely varied at control dials. A corner wall mount is included for easy corner mounting.

    Products specifications
    Size360Degx5-20m
    Dimensions119x60x80mm
    IP RatingIP44
    FinishWhite
    Ambient Light<3-2000 Lux (adjustable)
    Detection DistanceMax.12m (24)
    Detection Motion Speed0.6-1.5m/s
    Detection Range360 degrees
    Frequency50/60Hz
    Installation Height1.8 - 2.5m
    Power Source220-240V AC
    Time Delay10sec+/- 3sec to 15min+/-2min(adjustable)
    Wattage0.5W
    Relay Rating6A
    MaterialPC(UV proof)
    Warranty5 years
    Weight0.6Kg (N)
    BrandCED
